1853 ENFIELD RIFLED MUSKET PARTS FOR ARMISPORT BRAND

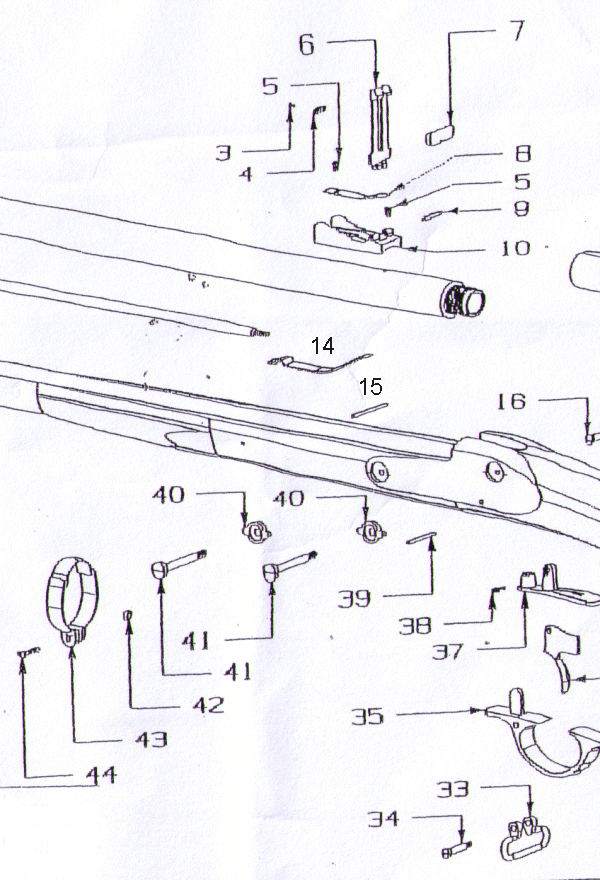

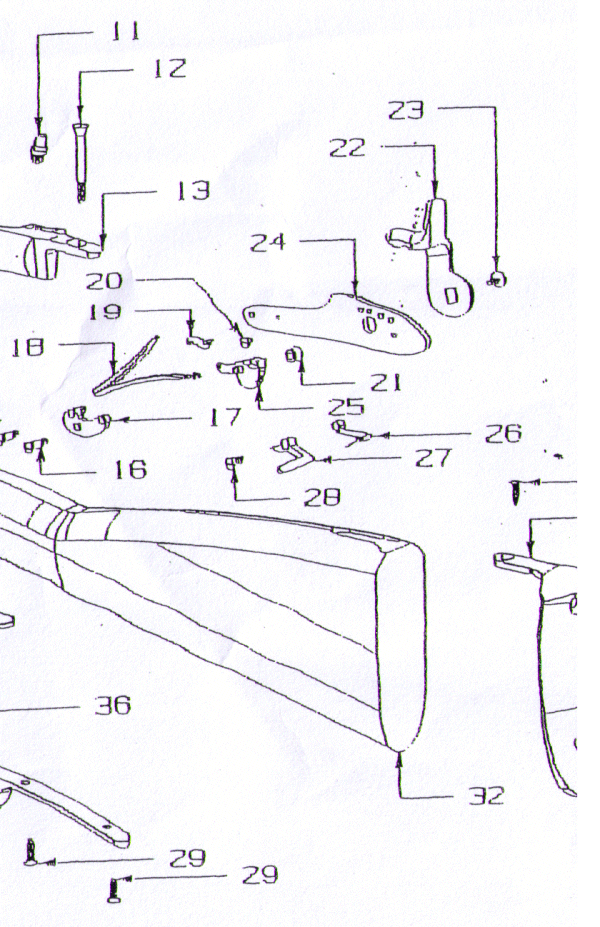

SCROLL DOWN THE PAGE FOR MORE VIEWS OF THE EXPLODED DIAGRAM. ALL INTERNAL PARTS FOR THE 1853 ALSO FIT THE 1858 AND THE MUSKETOON. PRICES ARE SUBJECT TO CHANGE WITHOUT NOTICE. PARTS ARE NOT REFUNDABLE. NUMBERS BELOW ARE FOR IDENTIFICATION ONLY As they relate to the exploded diagram. Blockade Runner order numbers are found on page 1 and page 7. 1. FRONT SITE ITEM # 1-53 2. BARREL ITEM #2-53 3. REAR SIGHT SLIDE SCREW ITEM #3-53 4. REAR SIGHT SLIDE SPRING ITEM #4-53 5. REAR SIGHT BASE SCREW ITEM #5-53 6. REAR SIGHT LEAF ITEM #6-53 7. REAR SIGHT SLIDE ITEM #7-53 8. REAR SIGHT LEAF SPRING ITEM #8-53 9. REAR SIGHT LEAF PIN ITEM #9-53 10. REAR SIGHT BASE ITEM #10-53 10-A. REAR SIGHT COMPLETE ITEM #10-53 11. NIPPLE ITEM #11-53 12. TANG SCREW ITEM #12-53 13. TANGS ARE SOLD INSTALLED ON BARRELS ONLY. 14. RAMROD RETAINER SPRING ITEM #14-53 15. RAMROD RETAINER SPRING PIN ITEM #15-53 16. BRIDLE SEAR SCREW ITEM #16-53 17. BRIDLE ITEM #17-53 18. MAINSPRING ITEM #18-53 19. STIRRUP ITEM #19-53 20. MAINSPRING SCREW ITEM #20-53 21. TUMBLER STOP ITEM #21-53 22. HAMMER ITEM #22-53 23. HAMMER SCREW ITEM #23-53 24. LOCK PLATE ITEM #24-53 24-A. LOCK PLATE COMPLETE ITEM #24-53 25. TUMBLER ITEM #25-53 26. SEAR SPRING ITEM #26-53 27. SEAR ITEM #27-53 28. SEAR SPRING SCREW ITEM #28-53 29. TRIGGER GUARD SCREW ITEM #29-53 30. BUTT PLATE ITEM #30-53 31T. BUTT PLATE SCREW TOP ITEM #31T-53 31R. BUTT PLATE SCREW REAR ITEM #31R-53 32. STOCK COMPLETE ITEM #32-53 32-A. STOCK, WOOD ONLY ITEM #32-53 33. REAR SLING LOOP ITEM #33-53 34. REAR SLING LOOP SCREW ITEM #34-53 35. TRIGGER GUARD ITEM #35-53 36. TRIGGER ITEM #36-53 37. TRIGGER PLATE ITEM #37-53 38. TRIGGER SCREW ITEM #38-53 39. TRIGGER PLATE SCREW ITEM #39-53 40. LOCK PLATE SCREW WASHER ITEM #40-53 41. LOCK PLATE SCREW ITEM #41-53 42. BAND SCREW WASHER (KNURL) ITEM #42-53 43. REAR BARREL BAND ITEM #43-53 44. REAR BARREL BAND SCREW ITEM #44-53 45. MIDDLE BARREL BAND ITEM #45-53 46. FRONT SLING LOOP ITEM #46-53 47. FRONT BARREL BAND ITEM #47-53 48. NOSE CAP ITEM #48-53 49. NOSE CAP SCREW ITEM #49-53 50. RAMROD, COMPLETE ITEM #50-53 Click here to return to ARMISPORT MUSKETS on page THREE Of the Blockade Runner Catalog. Click here to refer back to catalog INDEX page. www.blockaderunner.com Phone:  931-389-6294     Fax:  931-389-0486 This site designed and created by Blockade Runner Publishing Copyright © 2019 - No portions of this website may be redistributed in any form without expressed written permission from Blockade Runner Inc.
